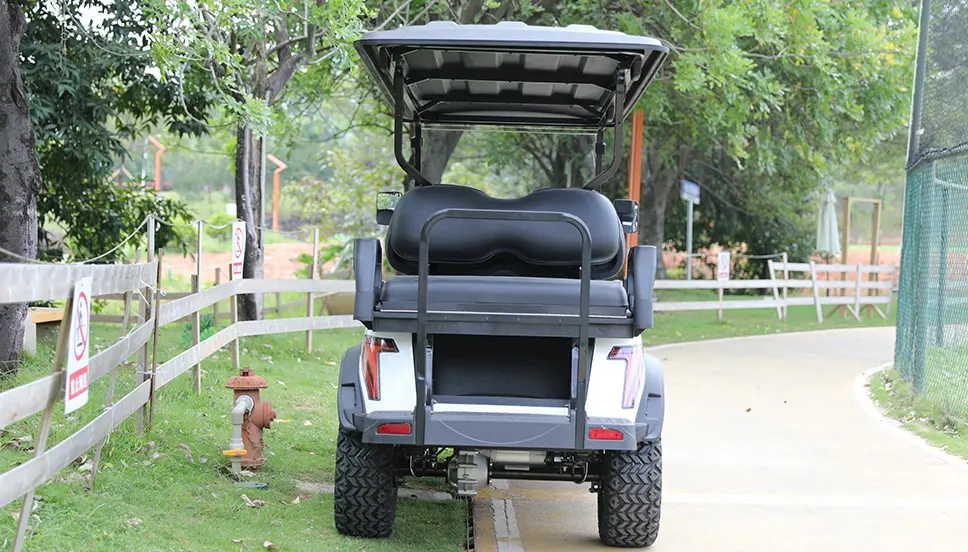

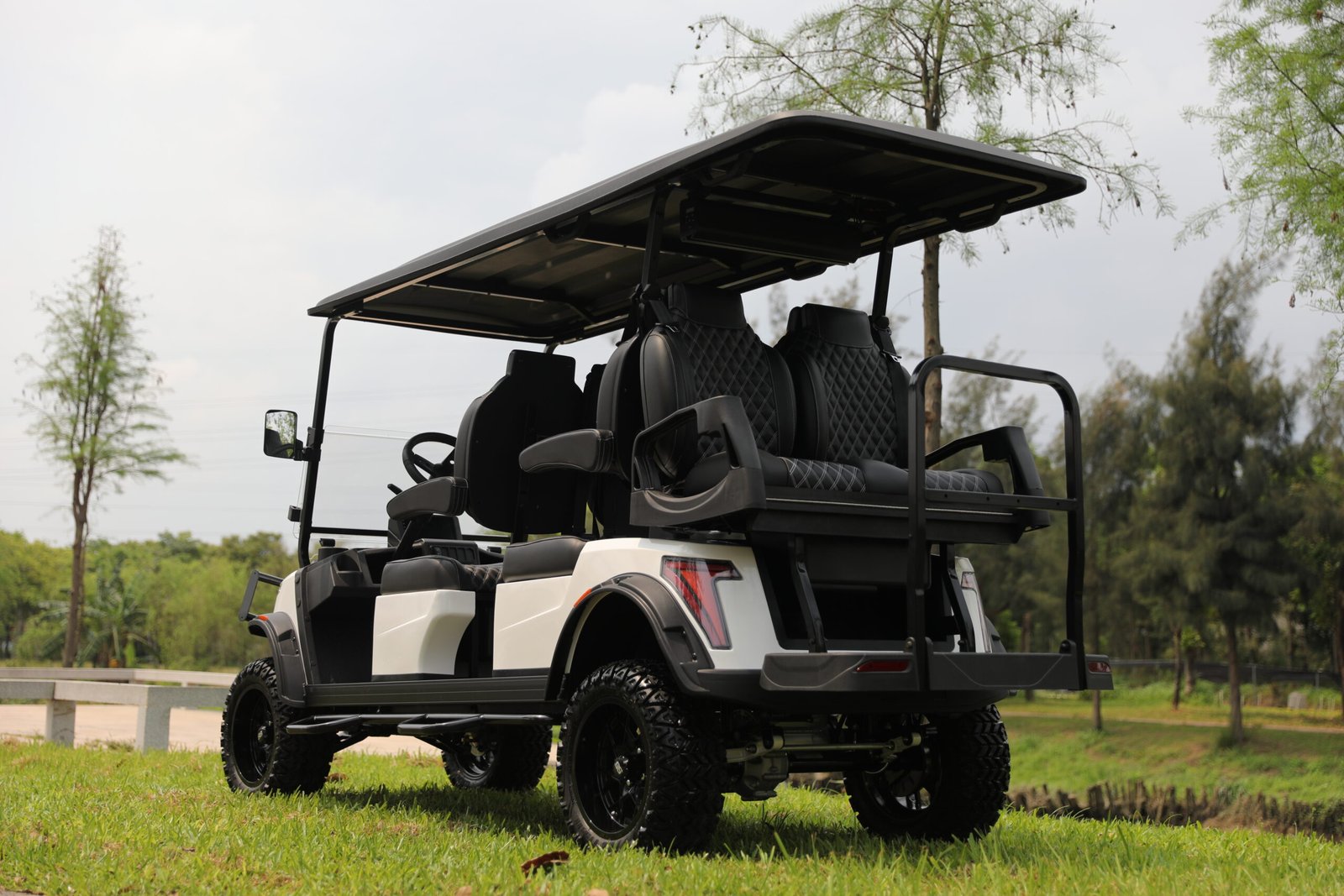

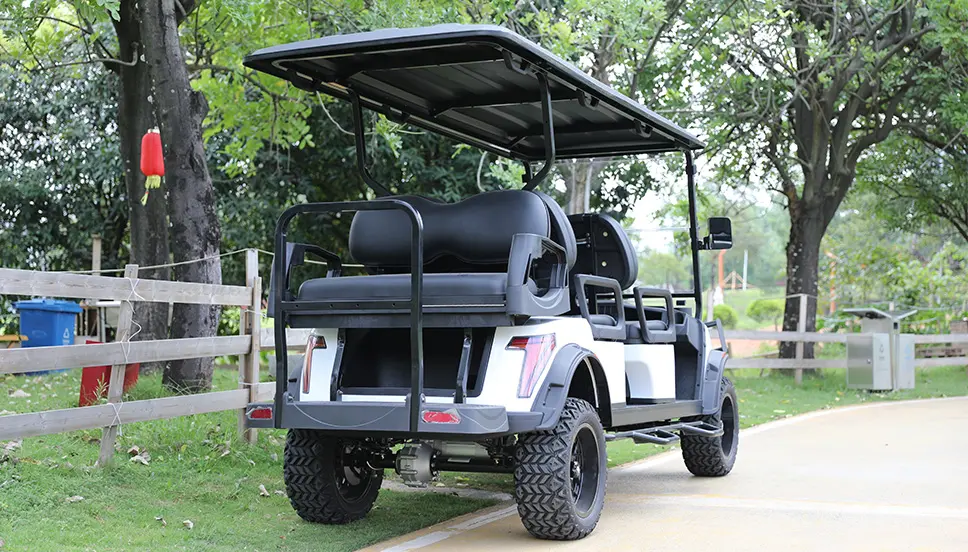

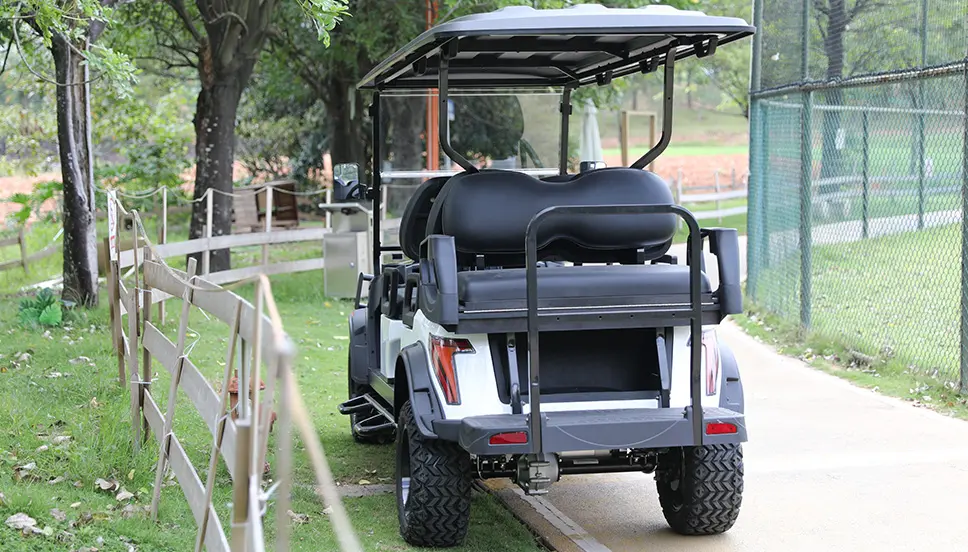

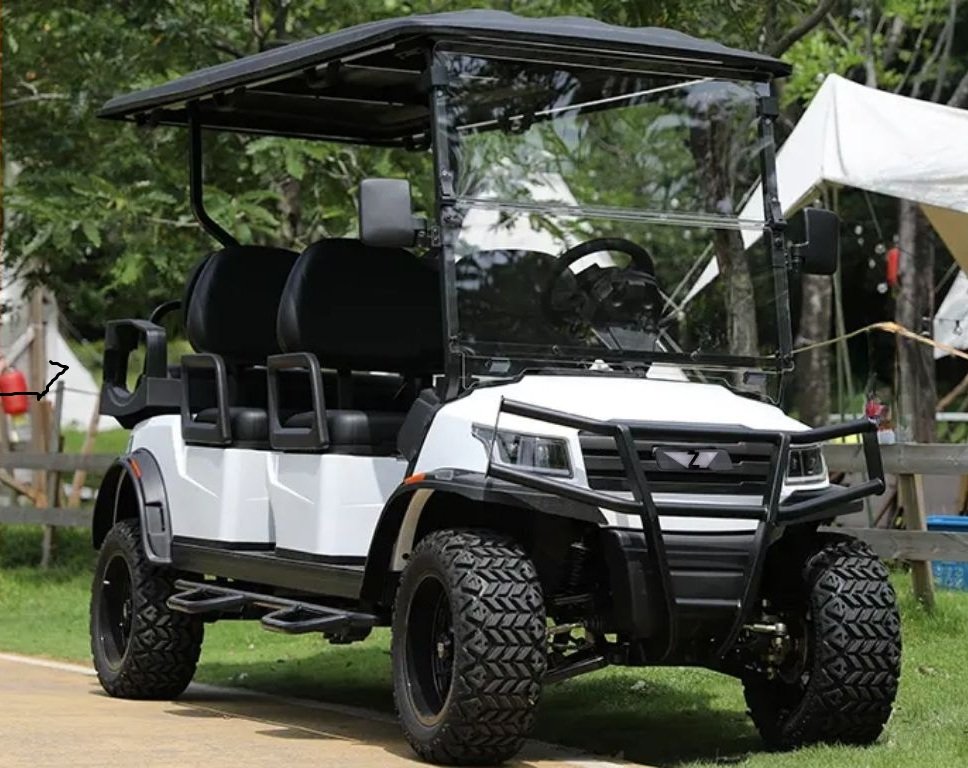

LIFTED SERIES一 TERRAIN 6 MODEL

CA$17,995

A Lifted Golf Cart Is A Cart That Has Had The Both The Overall Height Of The Cart Increased And More Importantly The Ground Clearance Increased As Well. It Is A Lifted Cart That Aims To Provide Better Rough Terrain Handling And Off Road Handling Where Needed. it has following benefits >Increased ground clearance , Improved off-road capabilities, Improved off-road capabilities,Better suspension ,Improved traction and balance,Better visibility,Unique style .,etc

Specifications

Engine
Engine Type AC Electric Motor
Rated Power 5KW
Battery Lithium 48V 105Ah or Lead Acid 170Ah
Charging Port (SAE J1772) 120V / 220V AC
Drive RWD
Top Speed 18–40 KM/h
Estimated Maximum Driving Range 60Km (Lithium), 40Km (Lead Acid)
Charger Smart on-board charger
Charging Time 120V 2–4 Hours (Lithium), 8 Hours (Lead Acid)
Dimensions
Overall Length 3745 mm
Overall Width 1315 mm
Overall Height 2120 mm
Wheel Tread Front 980 mm / Rear 1085 mm
Ground Clearance 22 cm
Tire 23X10-12
Wheelbase 2516 mm
Dry Weight 690 Kg
Occupant Capacity 6
Suspension
Front Suspension Four-arm independent suspension
Rear Suspension Leaf Spring with Damper
Brake
Front Brake 4 wheel disc brake + Electronic parking
Other
Colors Ocean Grey, Sapphire Blue, Pearl Black, Pearl White, Apple Green, Matt Black, Dark Green, Orange, Red
Warranty 60 Months Lithium / 12 Months Limited Warranty
