LED Outdoor Light Series – Specifications
| General Features | |

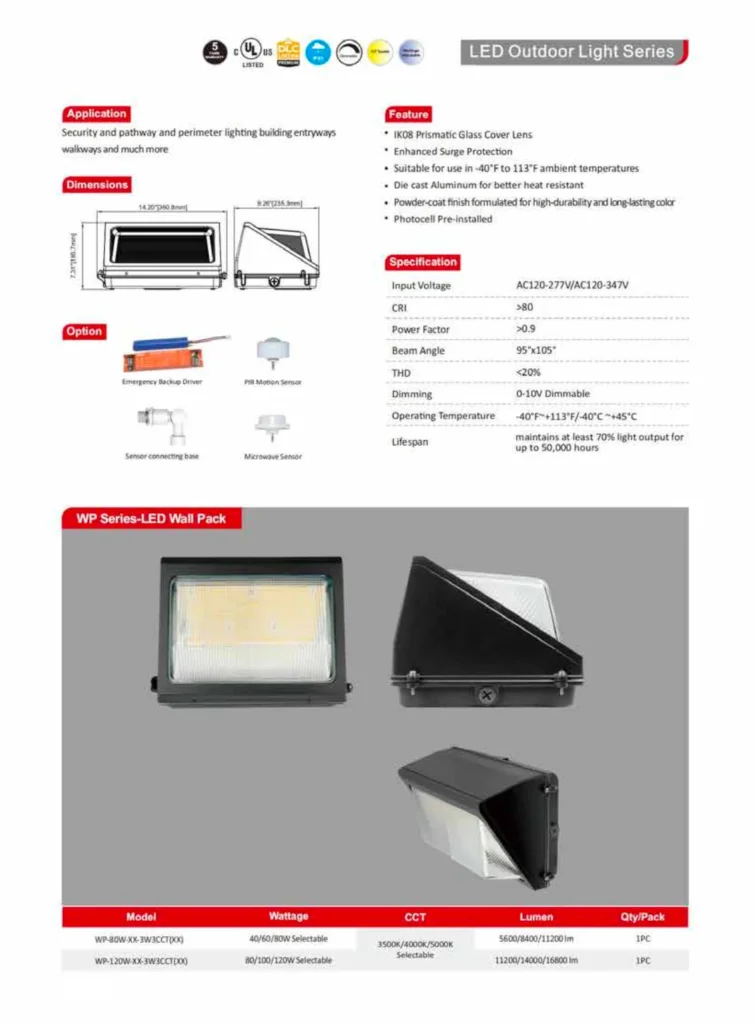

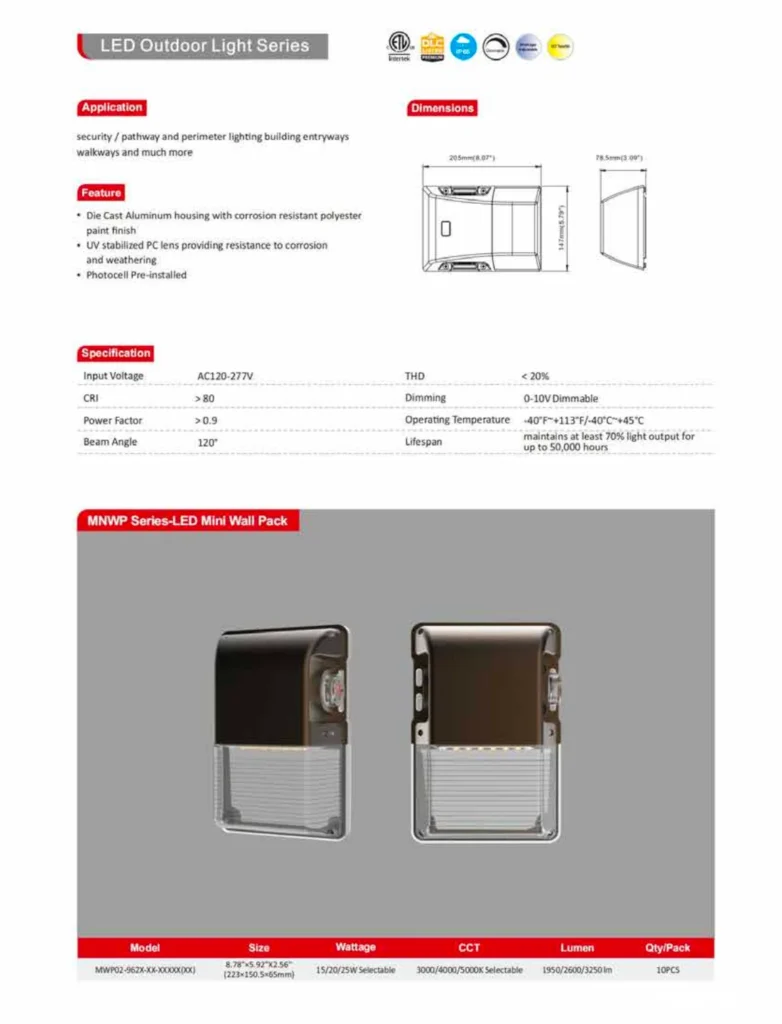

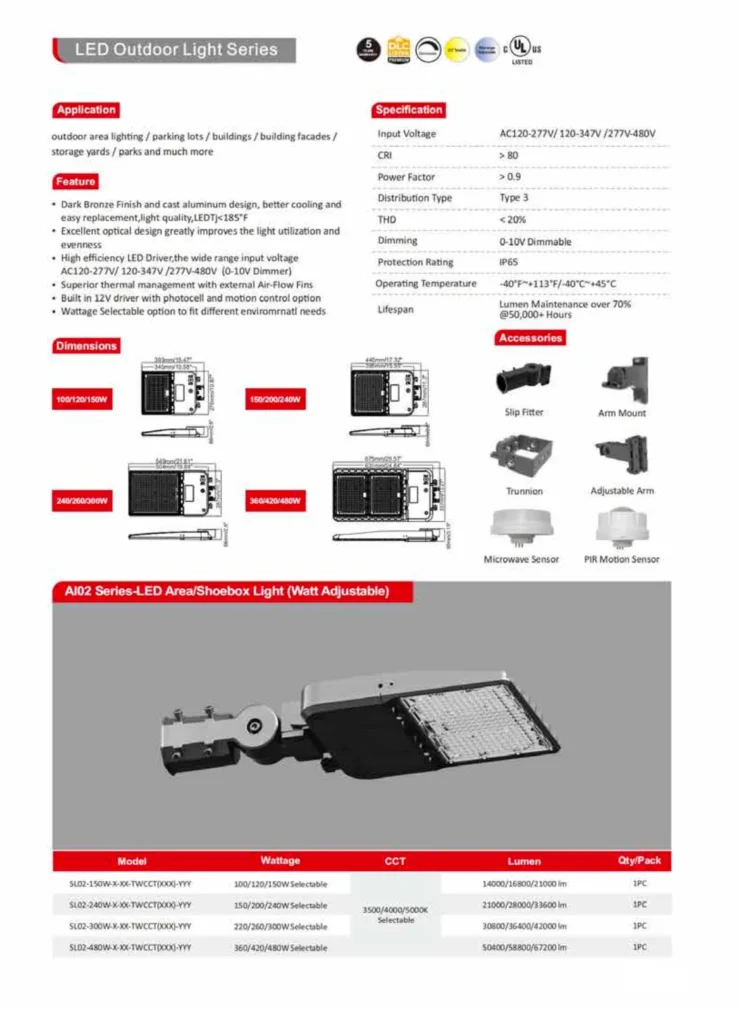

| Product Range | Area / Shoebox Lights, Wall Packs, Mini Wall Packs |
| Housing | Dark bronze die-cast aluminum body with advanced heat dissipation |
| Lens | Tempered glass, UV resistant |
| Surge Protection | Included (select models) |
| Photocell | Pre-installed (select models) |
| Selectable Options | Wattage and CCT selectable |
| Mounting Options | Arm mount, slip fitter, trunnion, adjustable arm |
| Additional Options | Motion sensor & emergency driver (model dependent) |
| Maximum Output | Up to 66,000 lumens |
| IP Rating | IP65 – All-weather outdoor rated |
| Applications | Parking lots, pathways, perimeters, storage yards, building entrances |
| Technical Specifications | |
| Input Voltage | AC120–277V / AC130–347V / AC277–480V |
| CRI | > 80 |
| Power Factor | > 0.9 |
| Beam Angle | 120° or 150°×105° (varies by model) |
| THD | < 20% |
| Dimming | 0–10V Dimmable |
| Operating Temperature | -40°F to 113°F (-40°C to +45°C) |
| Lifespan | Up to 50,000 hours (≥70% lumen maintenance) |
Note: Sensor compatibility, emergency drivers, and photocell functionality vary by model.
