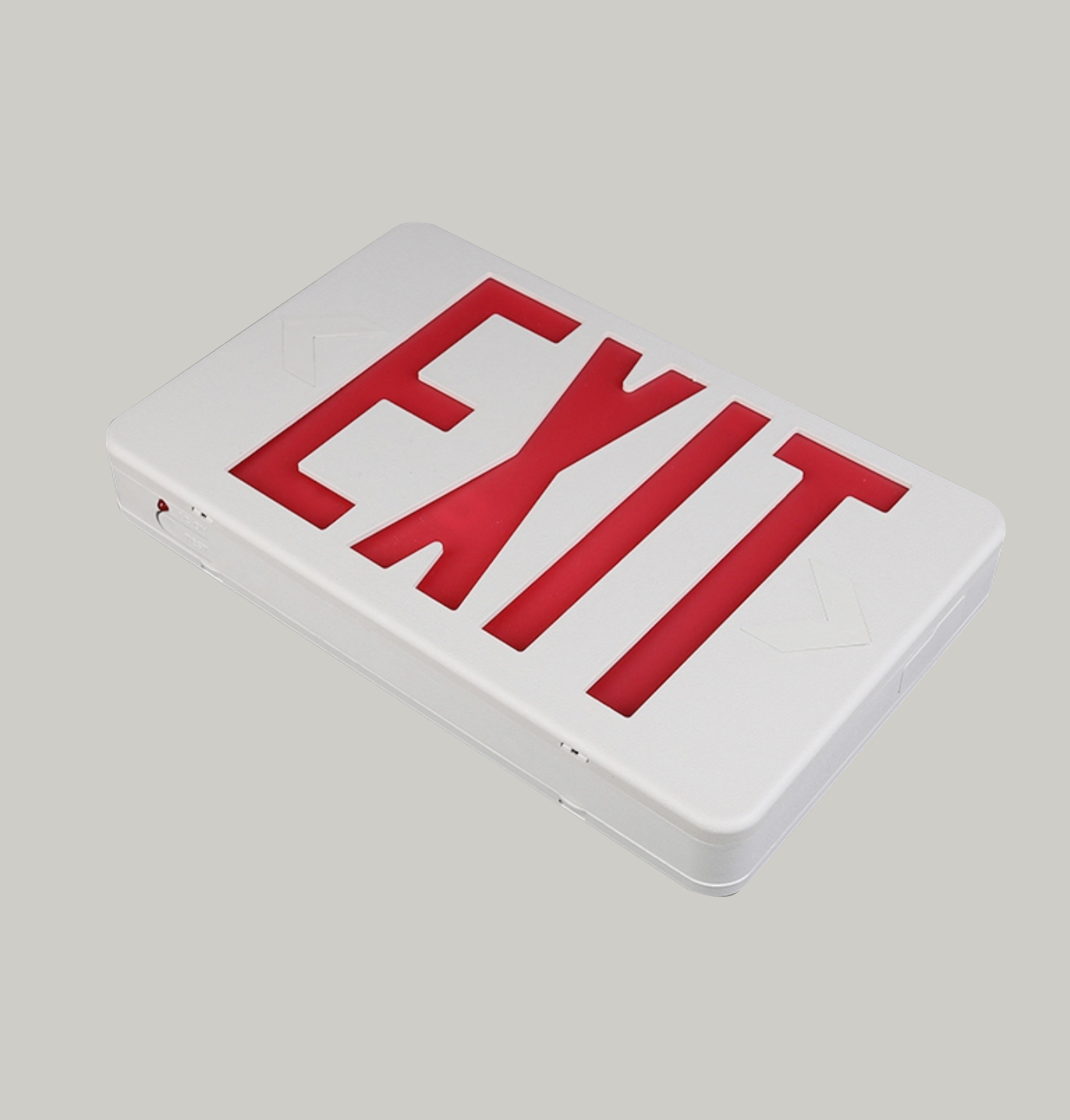

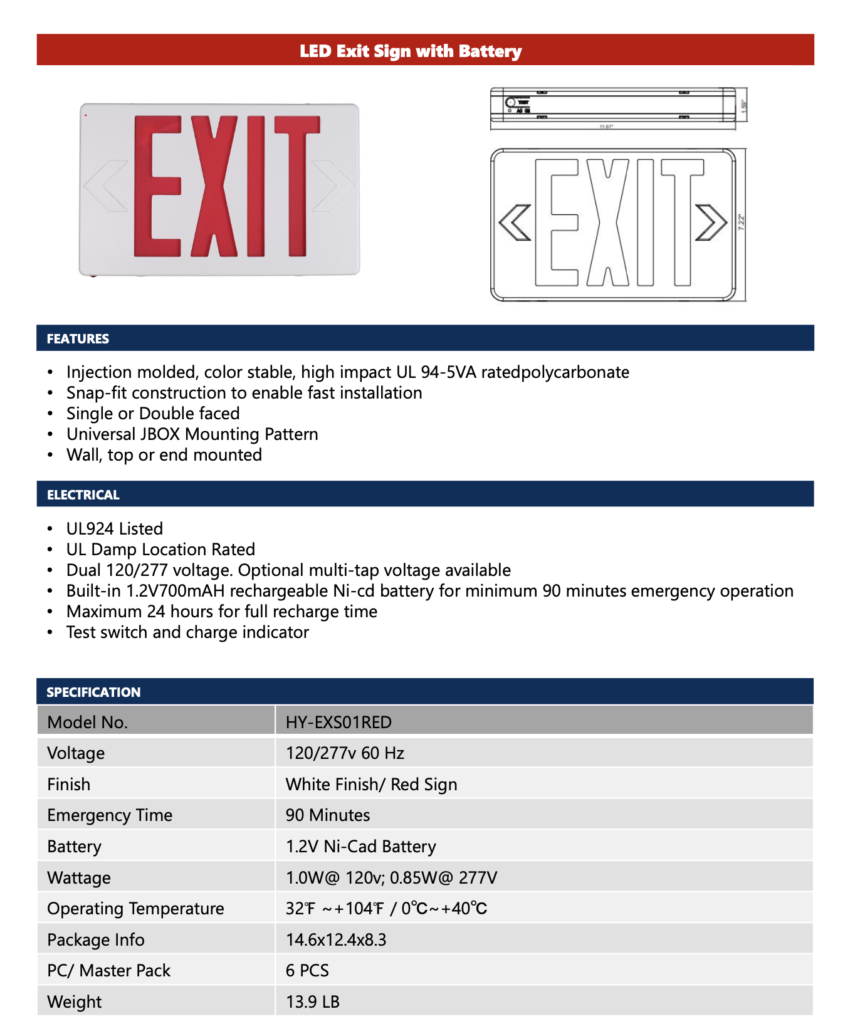

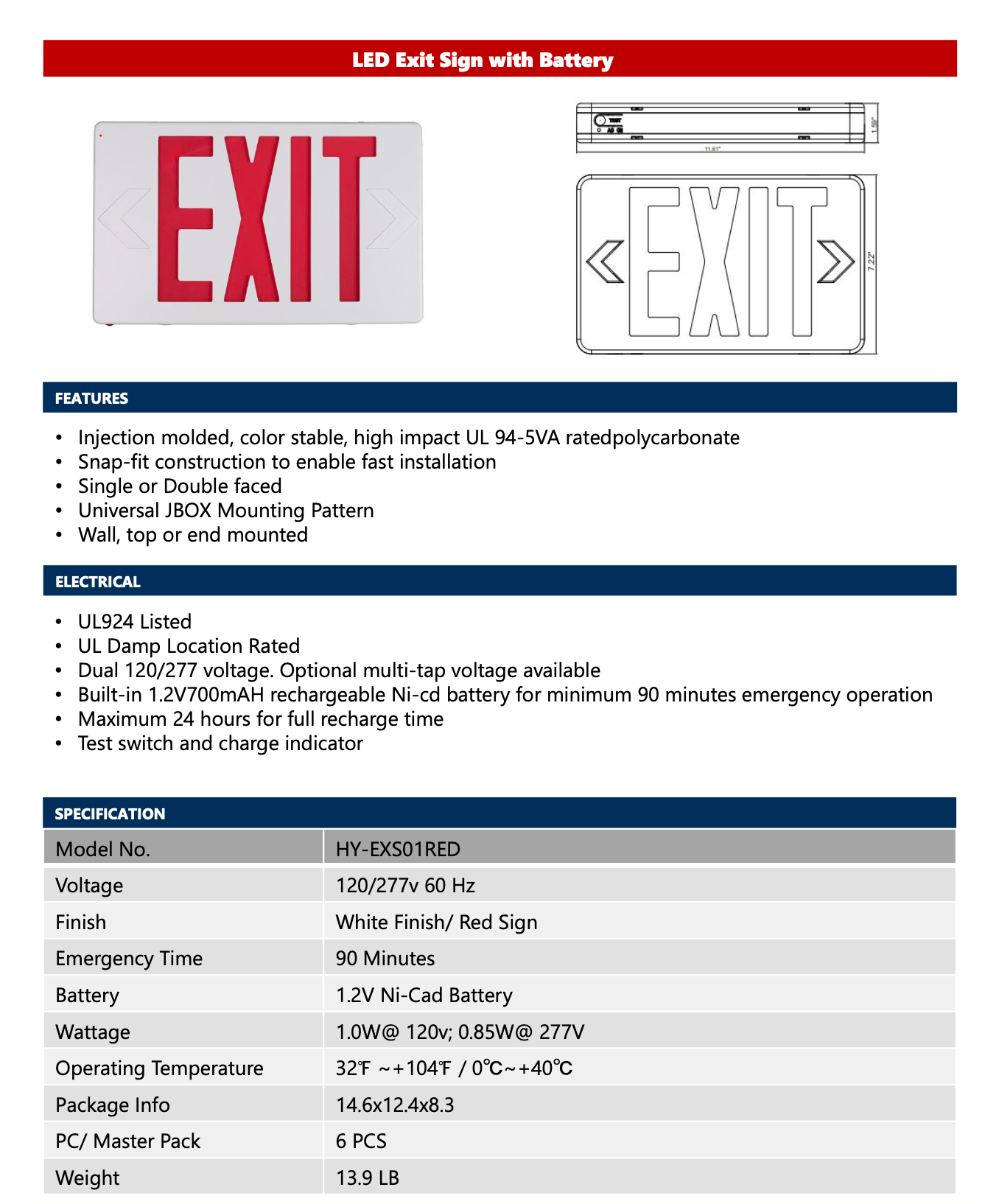

LED Exit Sign with Battery – Specifications
| General Features | |
| Housing | Injection-molded, color-stable, high-impact polycarbonate (UL 94-5VA rated) |
| Installation | Snap-fit construction for quick installation |
| Face Configuration | Single or double face configurable |
| Mounting | Universal J-box pattern; wall, top, or end mountable |
| Lettering | Bright red EXIT lettering |
| Certification | UL924 listed; certified for damp locations |
| Warranty | 5-year warranty on electronics and housing |
| Electrical Features | |
| Input Voltage | Dual 120/277V input (optional multi-tap available) |
| Battery | 1.2V 700mAH rechargeable Ni-Cad |
| Emergency Operation | Minimum 90 minutes |
| Recharge Time | Max 24 hours |
| Indicators | Test switch and charge indicator included |
| Technical Specifications | |
| Model No. | HY-EXS01RED |
| Voltage | 120/277V 60Hz |
| Finish | White housing with red sign |
| Emergency Time | 90 minutes |
| Battery Type | 1.2V Ni-Cad |
| Wattage | 1.0W @ 120V / 0.85W @ 277V |
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Package Dimensions | 14.6 x 12.4 x 8.3 in |
| Master Pack | 6 units per case |
| Weight | 13.9 lbs |
Note: Intended for indoor use in compliance with fire and safety code standards.
