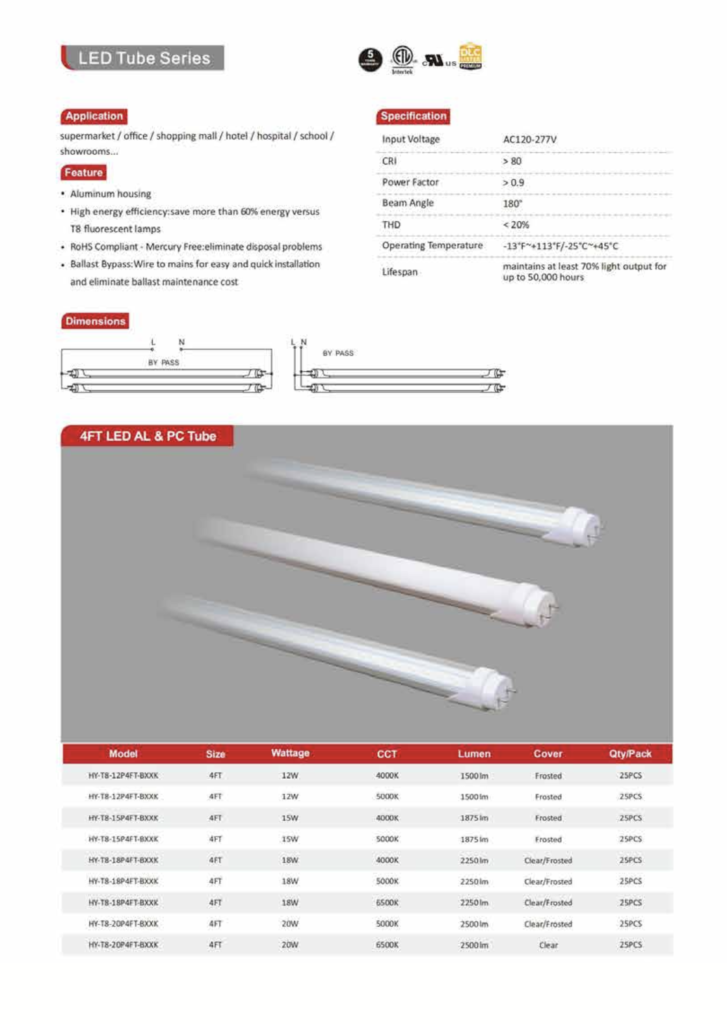

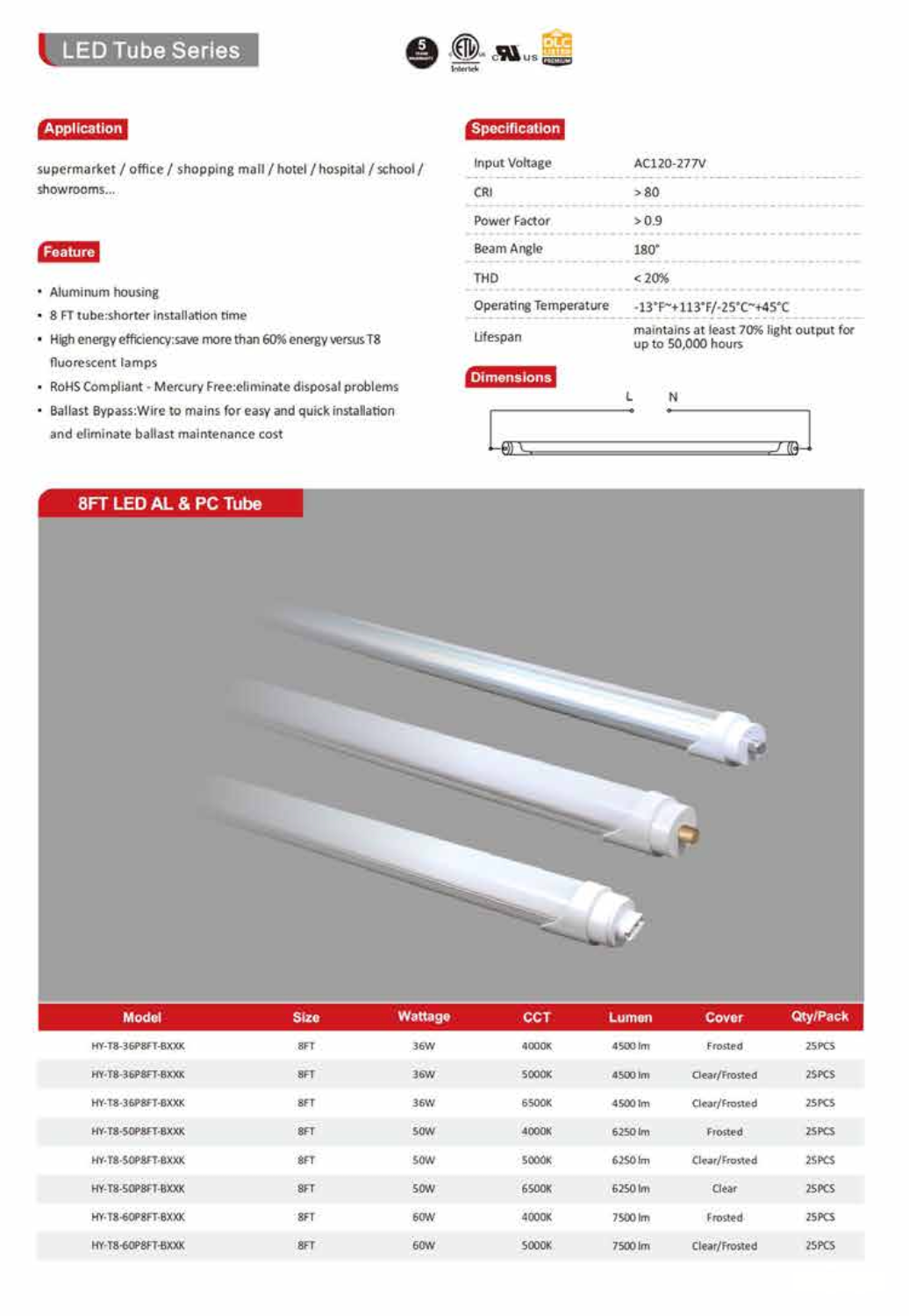

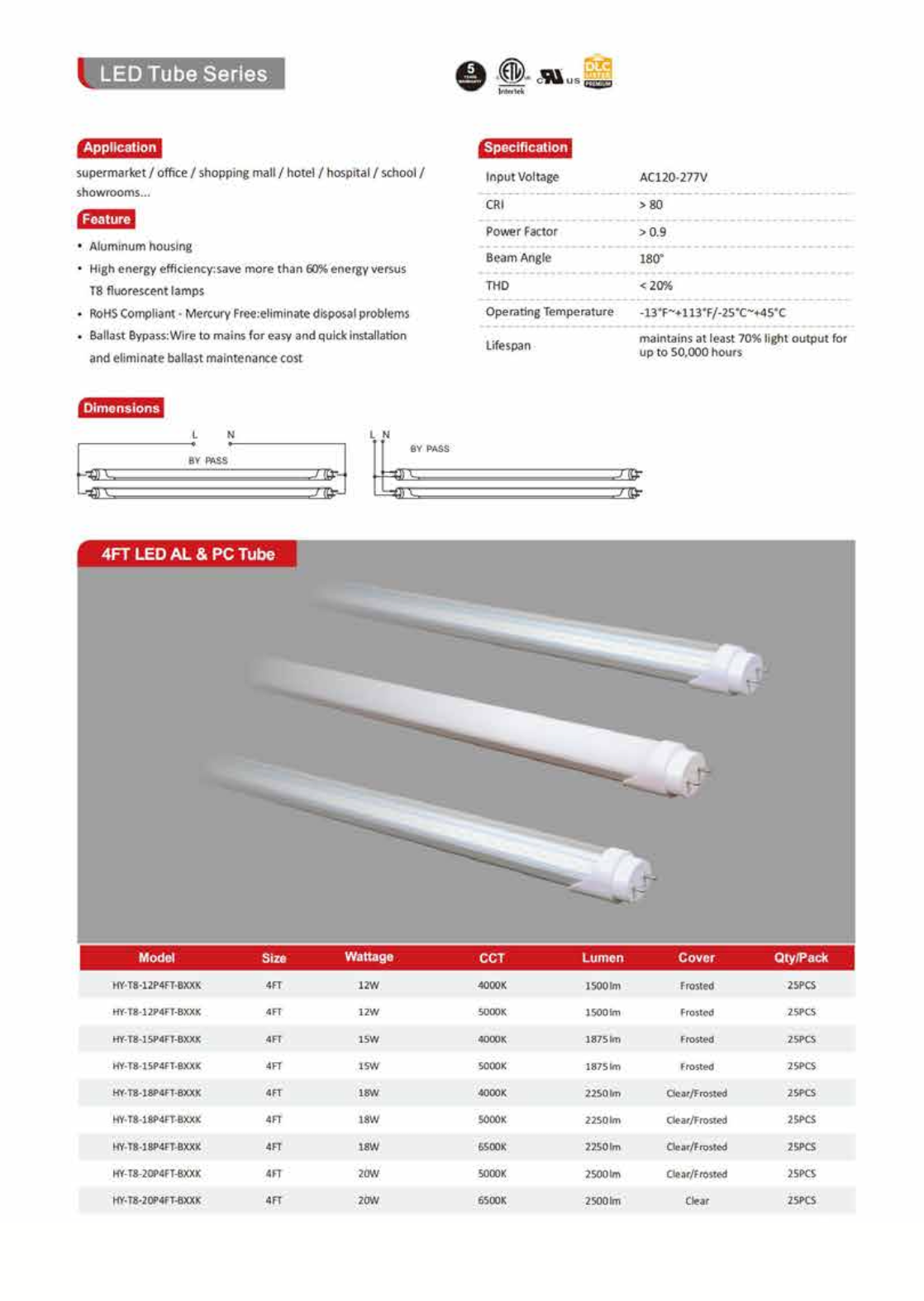

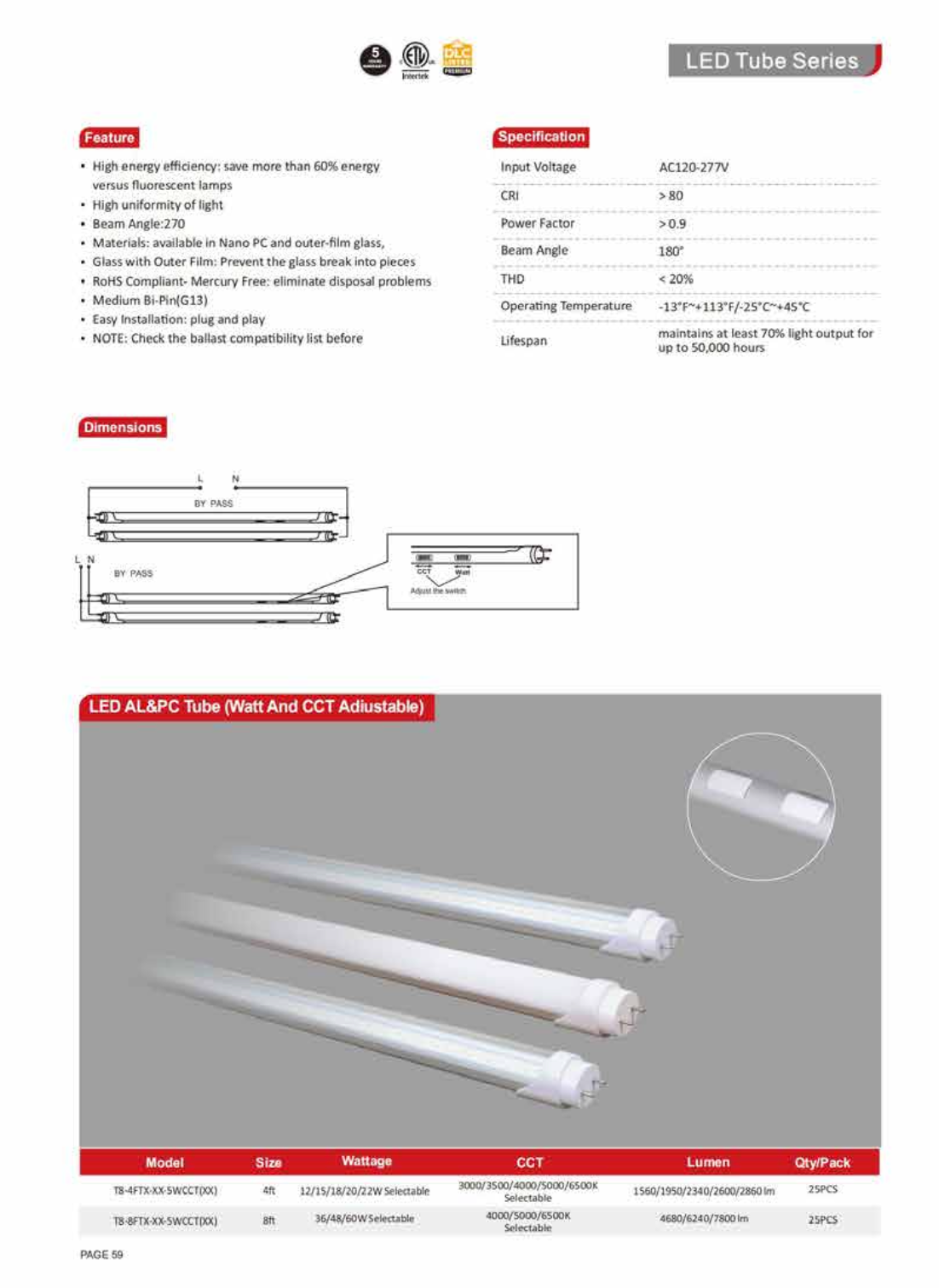

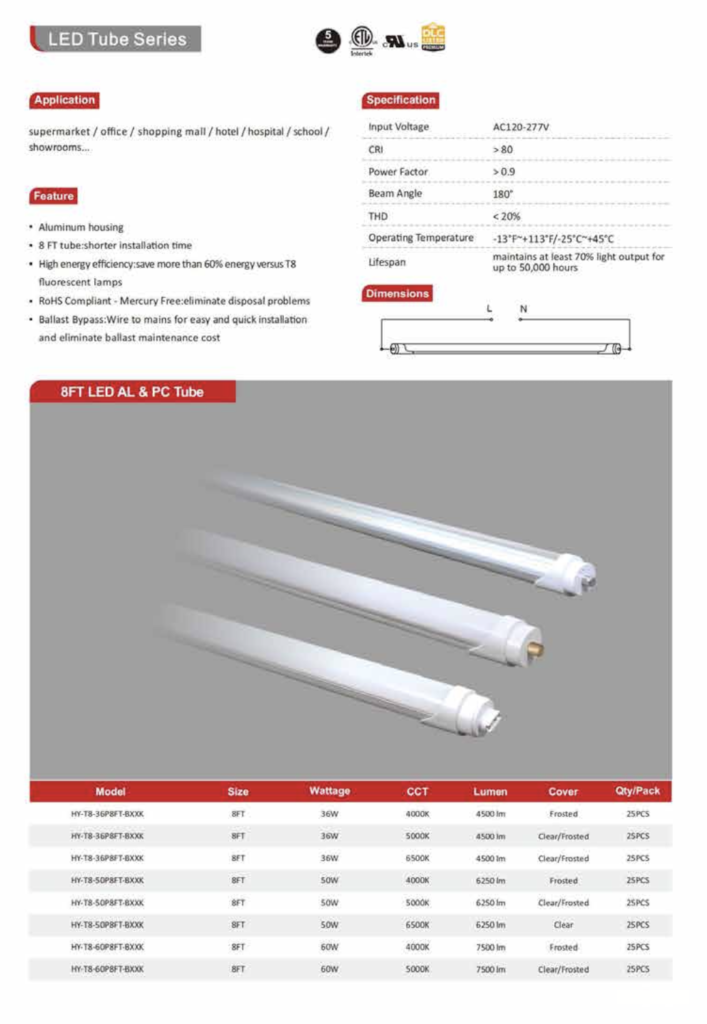

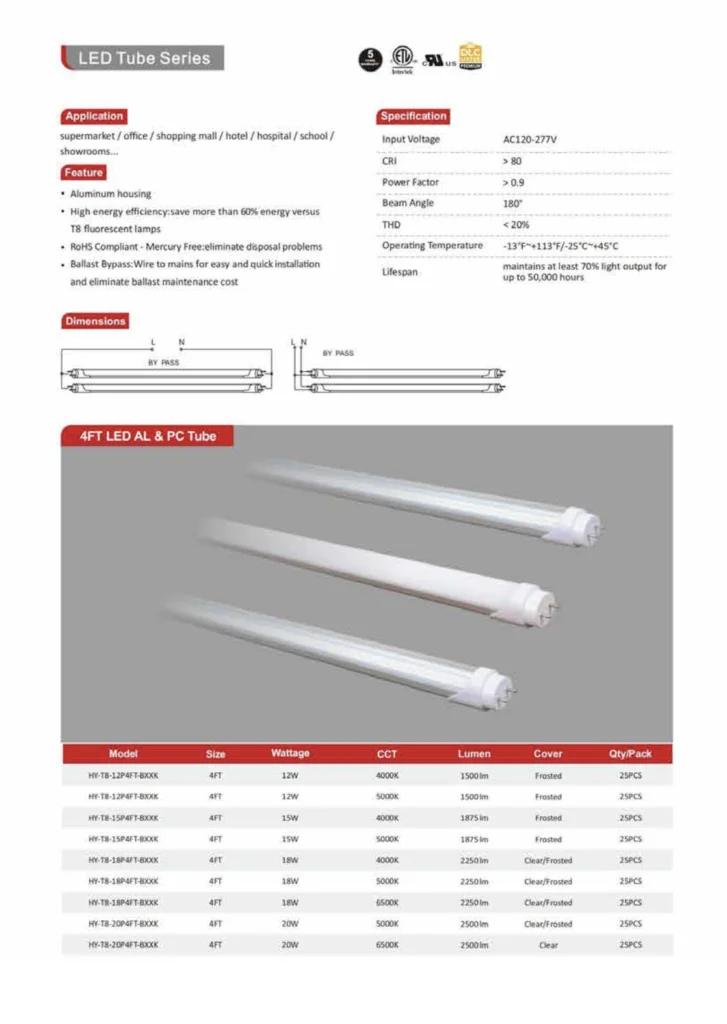

LED Tube Series – Specifications
| General Features | |
| Construction | Durable aluminum housing for optimal heat dissipation |
| Energy Savings | Up to 60% savings vs. traditional T8 fluorescent lamps |
| Light Uniformity | High uniform output with ≥180° beam angle |
| Materials | Nano PC or outer-film glass options |
| Glass Safety | Outer-film coating prevents shattering into pieces |
| Environmental | RoHS compliant – mercury-free & recyclable |
| Base Type | Medium Bi-Pin (G13) |
| Installation | Plug & Play or Ballast Bypass (direct wire) |
| Sizes Available | 4FT & 8FT (AL & PC housing) |
| Adjustable Options | Watt & CCT selectable models available |
| Applications | Supermarkets, offices, malls, schools, hospitals, showrooms |
| Technical Specifications | |
| Input Voltage | AC120–277V |
| CRI | > 80 |
| Power Factor | > 0.9 |
| Beam Angle | ≥180° |
| THD | < 20% |
| Operating Temperature | -13°F to 113°F (-25°C to +45°C) |
| Lifespan | Up to 50,000 hours (≥70% lumen maintenance) |
Note: Please verify ballast compatibility before installation.
