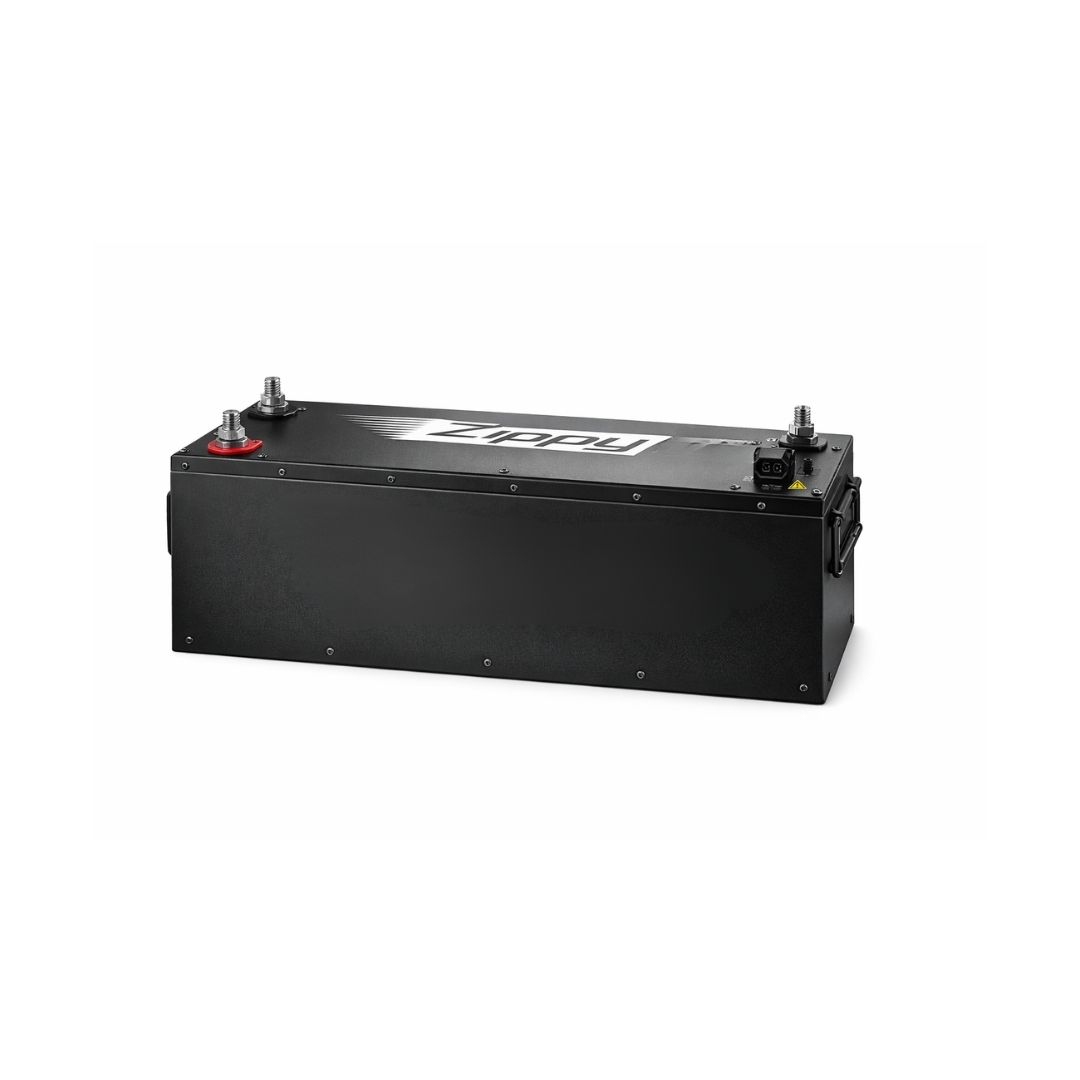

Zippy 60V 150Ah LiFePO4 Battery
High-Capacity 60V Lithium Iron Phosphate Battery
High-performance 60V LiFePO4 lithium battery pack designed for golf carts, utility vehicles, and energy storage. Maintenance-free, rapid charging, and long cycle life.
Experience the ultimate in energy storage with the Zippy 60V 150Ah LiFePO4 Battery. Specially built with EVE 150Ah cells, it features an IP65 waterproof rating, integrated CAN/RS232 communications, and an active smart BMS. Delivering up to 4,000 cycles at 25°C, this high-capacity battery is perfect for heavy-duty electric vehicles, warehouse logistics equipment, and backup power applications.
Why Choose This Product?
- Large 9.6 kWh capacity for extended operations
- IP65 rating allows outdoor and damp environment use
- Rapid charging support up to 75A
- Very long cycle life with SOH tracking
- Switch and charging activation methods
Key Features
Nominal Voltage: 64.0V, Capacity: 150Ah
IP65 waterproof and dustproof rating
Premium EVE 150Ah cells (1P20S)
CAN and RS232 communication interfaces
Active protection BMS with passive balancing
Matt black powder coated surface finish
Specifications
Battery ChemistryLithium Iron Phosphate (LiFePO4)
Cell RatingEVE 150Ah
Cell Configuration1P20S
Nominal Voltage (V)64.0
Nominal Capacity (Ah)150.0
SOC Recommended Range5% – 95%
Waterproof RatingIP65
Standard Charge Current (A)30.0
Max Continuous Charge Current (A)75.0 (0.5C)
End-of-Charge Voltage (V)73.0
Charging Operating Temperature-10°C to 70°C
End-of-Discharge Voltage (V)50.0
Standard Discharge Current (A)75.0 (0.5C)
Max Continuous Discharge Current (A)150.0 (1C)
Peak Discharge Current (A)350.0 (10s) ≥30% SOC, 25±2°C
Discharging Operating Temperature-20°C to 70°C
Battery Management System (BMS)Integrated monitoring and protection system
Balancing TypePassive
Balance Current100mA
Balance Start Voltage3.0V
Balance Start Delta20mV
CommunicationCAN (charger/vehicle), RS232
Surface FinishPowder coating / Matt black
Weight84 kg ±2 kg
Battery Box Size (L × W × H)780 × 330 × 221.5 mm
Maximum Dimensions (L × W × H)881 × 377 × 222 mm
Storage Temperature-20°C to 45°C
Storage Humidity15% – 90% RH
Cycle Life4000 cycles (80% SOH) @ 25°C 2000 cycles (80% SOH) @ 45°C
Reverse Recharge Current120A
Activation MethodSwitch activation + charging activation
